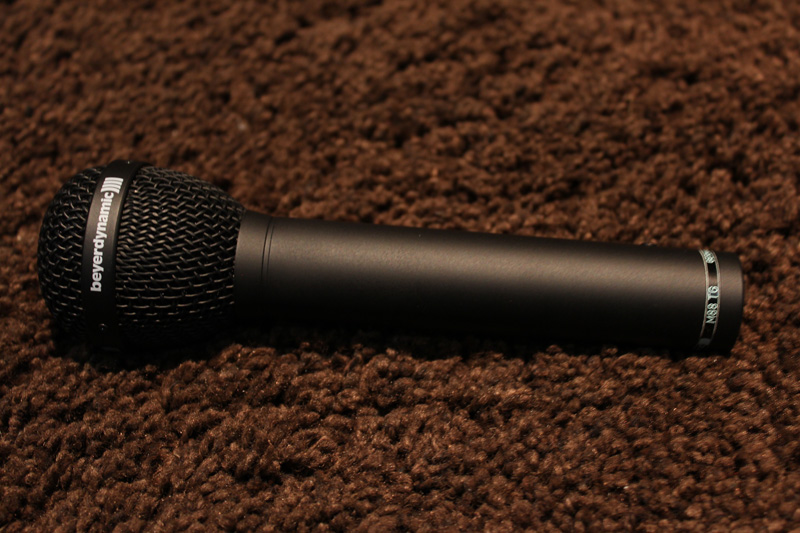

Beyerdynamic M88 TG

TECHNICAL SPECIFICATIONS
Transducer type. . . . . . . . . . . . . . . . . . . . Dynamic moving coil
Operating principle . . . . . . . . . . . . . . . . . Pressure gradient
Frequency response . . . . . . . . . . . . . . . . . 30 - 20,000 Hz
Polar pattern . . . . . . . . . . . . . . . . . . . . . . Hypercardioid
Rear attenuation at 1 kHz . . . . . . . . . . . . > 23 dB at 120°
Open circuit voltage
at 1 kHz (0 dB =1 V/Pa) . . . . . . . . . . . . . . 2.9 mV/Pa
Magnetic field suppression . . . . . . . . . . . > 20 dB = 50 Hz
Nominal impedance. . . . . . . . . . . . . . . . . 200 Ω
Load impedance . . . . . . . . . . . . . . . . . . . ≥ 1000 Ω
Diaphragm . . . . . . . . . . . . . . . . . . . . . . . Hostaphan®
Casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Connection . . . . . . . . . . . . . . . . . . . . . . . . 3-pin XLR male
Dimensions:
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 mm
Shaft diameter . . . . . . . . . . . . . . . . . . . . . . 25.5 mm
Head diameter . . . . . . . . . . . . . . . . . . . . . . 48.5 mm
Weight w/out cable . . . . . . . . . . . . . . . . . . 320 g
